Economical transducers with stable CVD sensor technology

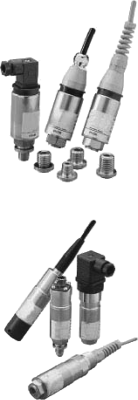

2200 Series / 2600 Series- General Purpose Industrial Pressure Transducers

  • Gauge, Absolute, Vacuum and Compound Pressure Models Available
  • Submersible, General Purpose and Wash down Enclosures
  • High Stability Achieved by CVD Sensing Element
  • Millivolt, Voltage and Current Output Models



The 2200 series features stability and accuracy in a variety of enclosure options. The 2600 series extends the packaging options via an all welded stainless steel back end for demanding submersible and industrial applications. The 2200 and the 2600 feature proven CVD sensing technology, an ASIC (amplified units), and modular packaging to provide a sensor line that can easily accommodate specials while not sacrificing high performance.

2200 Series / 2600 Series – data sheet.pdf (158,43 KB)

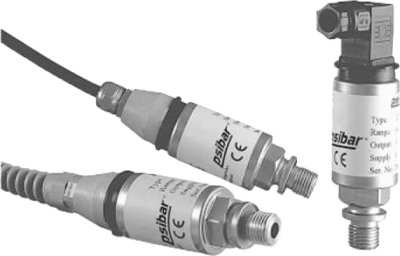

1200 Series / 1600 Series an OEM Transducer Featuring Exceptional Proof Pressure and Stability Specifications

  • Gauge, Vacuum, and Compound Pressure Models
  • General Purpose and Wash down Enclosures
  • High Proof Pressure Achieved by Thicker Diaphragm Construction



Voltage and Current Output Models The psibar features stability and toughness via its CVD and ASIC design coupled with a thicker diaphragm. The thicker diaphragm enables psibar to survive most pressure spikes caused by pump ripple, solenoid valves, etc. The 1600 series extends the packaging options by providing an all welded stainless steel back end for demanding industrial applications. The psibar‘s modular design enables special ordering of fittings, electrical cables, etc. for OEM applications. The ASIC and CVD technology enables us to offer almost any output over any pressure range.

1200 Series / 1600 Series – Data sheet.pdf (180,24 KB)

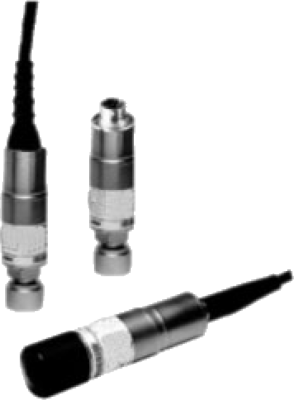

2800 Series High Performance Industrial Pressure Transmitters

  • 1% Error Band over -30° to 100°C
  • Customised Options
  • Ranges from 0.5 to 400 bar
  • Choice of Outputs



The 2800 series features stability and enhanced accuracy in a variety of enclosure options for demanding submersible and industrial applications. The 2800 features proven CVD sensing technology, an ASIC and modular packaging to provide a sensor with high performance over a wide temperature range. Modular construction allows customised options to be easily accommodated

2800 Series – Data sheet.pdf (139,99 KB)

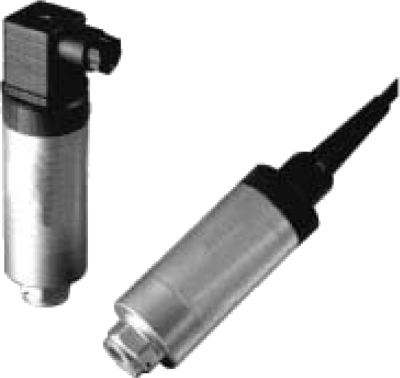

6600 Series Stable Industrial Transmitters with Turndown Capabilities

  • Gauge and Absolute Pressure Models
  • Submersible, General Purpose and Wash down Enclosures
  • High Stability Achieved by Sputtered Sensing Element



The 6600 series features customer accessible 5:1 turndown via a switch and potentiometer. Down ranging whether factory or user adjusted is ideal for applications requiring high overpressure. The 6600 are housed in a rugged enclosure for harsh

6600 Series – Data sheet.pdf (206,89 KB)

Highly accurate and stable sputtered sensor technology

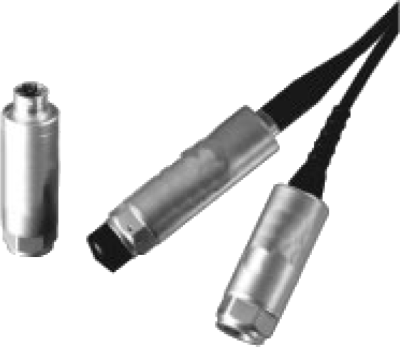

4000 Series High Performance, Long Term Stability Pressure Transducers

  • Gauge, Sealed , Absolute, and Differential Pressure Models
  • Submersible, General Purpose and Weather Proof Enclosures
  • High Stability Achieved by Sputtered Sensing Element



The 4000 series provides exceptional levels of stability and other performance specifications in a wide variety of enclosures from submersible to differential styles. By using a sputtered sensing element, which achieves a molecular fusion of a strain gauge material, an insulating material, and the 17-4 PH ss sensing element, the 4000 series provides the most stable sensor construction possible. These sputtered sensors are packaged for harsh applications requiring long term service where precise laboratory type measurements are required.

Also in the 4000 series is a range of high performance amplified sensors with voltage and current outputs. These laboratory specification sensors utilise the same thin film sensor as 4000. For more information contact your nearest sales office, a list of offices can be found at the back of this catalogue.

4000 Series High Performance, Long Term Stability Pressure Transducers – Data sheet.pdf (116,31 KB)

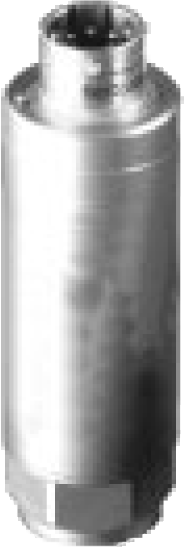

4000 Series-High Temperature, High Performance, Long Term Stability Pressure Transducers

  • Sealed and Absolute Models
  • Suitable in Temperatures up to 230 °C (450 °F)
  • High Stability Achieved by Sputtered Sensing Element



The high temp 4000 series provides exceptional levels of stability and other performance specifications while under excessive temperatures in harsh environments. Using a sputtered sensing element, which achieves a molecular fusion of a strain gauge material, an insulating material, and the 17-4 PH ss sensing element, generates the most stable sensor construction possible. These sputtered sensors are packaged for harsh applications requiring long term service where precise laboratory type measurements are required.

4000 Series High Temperature, High Performance, Long Term Stability Pressure Transducers – Data sheet.pdf (104,26 KB)

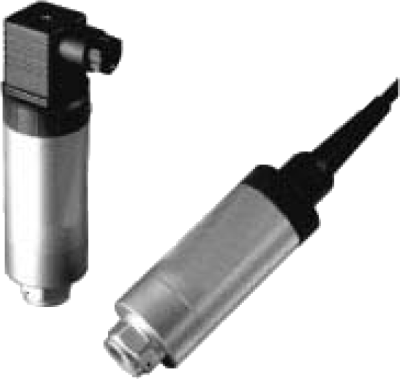

4600 Series High Performance, High Stability, with 5:1 Turndown Capability Industrial Transmitters

  • Gauge, Sealed and Absolute Models
  • Submersible, General Purpose and Wash down Enclosures
  • IS Models



The 4600 series provides precise laboratory type measurements in a rugged industrial package complete with turndown capabilities. Exceptional levels of stability and other performance specifications are achieved by using a sputtered sensing element, which achieves a molecular fusion of a strain gauge material, an insulating material, and the 17-4 PH ss sensing element. Sputtered or thin film technology provides years of worry free measurements under demanding real world conditions.

4600 Series High Performance, High Stability, with 5:1 Turndown Capability Industrial Transmitters – Data sheet.pdf (205,42 KB)

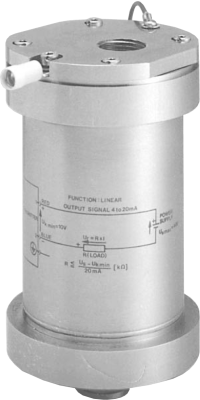

4264 Series High Performance, High Stability, with 5:1 factory Turndown Capability Flameproof Transmitters

  • Gauge, Sealed and Absolute Models
  • Flameproof Enclosure
  • CE approved



The 4264 series provides precise repeatable measurements in a flameproof housing complete with turndown capabilities. Exceptional levels of stability and other performance specifications are achieved by using a sputtered sensing element, which achieves a molecular fusion of a strain gauge material, an insulating material, and the 17-4 PH ss sensing element.

4264 Series High Performance, High Stability, with 5:1 factory Turndown Capability Flameproof Transmitters – Data sheet.pdf (122,33 KB)

Versatile enclosure packaging backed by proven LVDT sensing

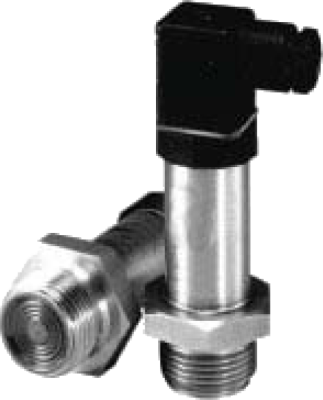

GDN Series Flush Mount Pressure Transmitter

  • Ranges from 40 mbar to 40 bar
  • All Stainless Steel Construction
  • 4:1 Span Turndown Capability



The GDN series utilizes LVDT technology in a flush mount package for slurries, suspended solids in liquids, and other dirty applications where recessed fitting could not be used. These transmitters feature all welded stainless steel construction with a G1 thread for easy installation and cleaning. Zero and Span field adjustments are standard, but hidden to prevent unauthorized tampering.

GDN Series Flush Mount Pressure Transmitter – Data sheet.pdf (71,92 KB)

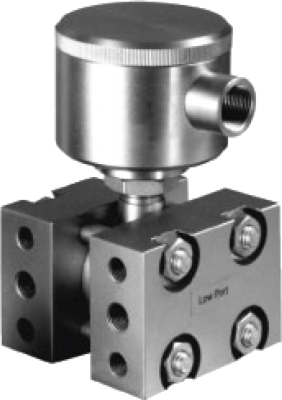

GBD Series Heavy Duty Differential Industrial Pressure Transmitter

  • Suitable for Liquid, Gas and Vapour
  • Media High Static Line Pressure
  • 4:1 Span Turndown Capability



The GBD series incorporates an LVDT sensor in a robust differential pressure enclosure, which is ideal for industrial process applications. An isolated stainless steel diaphragm uses one of two fluid fills available to transfer its movement to the LVDT sensor. A choice of silicone or flurolube fluid fills are available. These transmitters’ turndown capabilities coupled with their rugged design make them very well suited for harsh and demanding applications.

GBD Series Heavy Duty Differential Industrial Pressure Transmitter – Data sheet.pdf (135,69 KB)

Submersible Pressure Tranducers

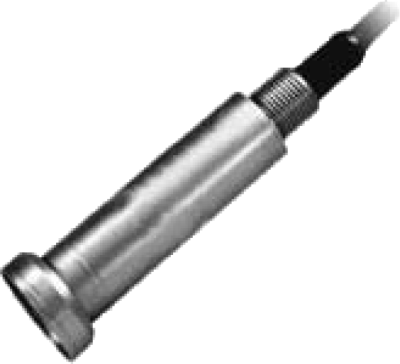

GAL Series Slim Submersible Transmitters with Remote Electronics

  • Low ranges from 400 mm wg to 160 m wg
  • Turndown Capabilities with Remote Electronic
  • All Welded Sensor



The GAL series packages LVDT sensor technology in three different sensors each with a remote electronic package that allows for zero and span calibration. The LG sensor has an exposed diaphragm and is suitable for use on clean liquids, liquids with suspended solids, highly viscous liquids, and slurries. The LT sensor has a recessed diaphragm protected by a plastic nose and is suitable for use on low viscosity liquids with less than 5 % suspended solids. The LM sensor has a recessed diaphragm and a protective nose cap in only a 17.6 mm diameter enclosure, which is designed for use in boreholes and other tight spaces. The LM is suitable for use on low viscosity liquids with less then 5 % suspended solids.

GAL Series Slim Submersible Transmitters with Remote Electronics – Data sheet.pdf (121,89 KB)

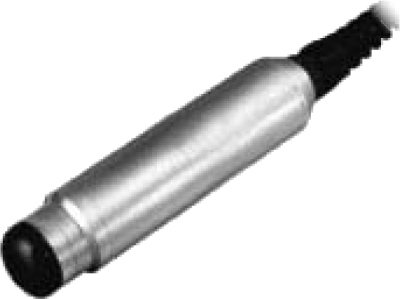

GCL Series Submersible Level Transmitter

  • Ranges from 150 mm wg to 160 m wg
  • Seawater model with Duplex/Hastelloy Construction
  • All Welded Sensor



The GCL series are submersible transmitters with on board signal conditioning for the LVDT sensor. The 1F transmitter has a recessed diaphragm protected by a plastic nose and features all stainless steel construction. The 2F transmitter has an exposed diaphragm and is suitable for use on clean liquids, sewage sludge, highly viscous liquids, and slurries. The 3F transmitter has a recessed diaphragm protected by a plastic nose and features Duplex/Hastelloy construction for sea water applications

GCL Series Submersible Level Transmitter – Data sheet.pdf (107,20 KB)
