MEYLE Absolute Encoder

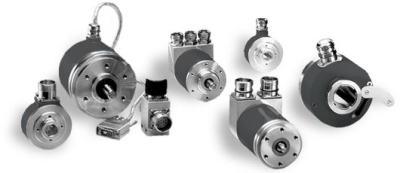

Comprehensive range of absolute encoders as solid shafts and hollow shaft versions.

Absolute encoders have a disk with a digital coding on concentric tracks. This code is read by a Opto-Asic. A unique bit pattern is assigned to each position. The advantage is, that after power failure true position verification is available as soon as power is up again, even if the shaft was moved during the dead state.


Advantage:

No reference drives after starting-up are necessary as with incremental systems. Safety is increased and the time taken for reference drives is saved.

DAMxx37/58 – Highlights absolute magnetic encoder

  • Absolute magnetic single- and multiturn encoders with SSI, CANopen, RS485, SAEJ1959 outputs  (Profibus on request)
  • Shaft and hollow shaft versions with 36 mm and 58 mm diameter
  • Resistant diecast housing and protection up to IP 67
  • Stainless steel shaft
  • Single-/multiturn (14 bit/40 bit)
  • 2-colour diagnostics LED
  • High shaft load up to 220 N radial
  • Compact and heavy-duty industrial types
  • Shaft Ø 6 or 10 mm
  • Blind shaft Ø 6, 8, 10, 12, 14 mm
  • Interface: SSI CANopen SAE J 1939 RS485
  • no battery, no gear (MT)
DAMxx37/58 data sheet

BAMH75 – Absolute multiturn hollow shaft encoder 75 mm

  • SSI-Interface
  • 25 Bits (13 Bit/Rev. x 12 Bits Rev.)
  • 10-30 Volts DC RS422 or RS485
  • Hollow-Shafts 10-50,8 mm
  • Supply Voltage 10-30 V DC
  • Current Cosumption 60 mA (max)
  • Codes Available Gray or Binary
  • Logic Level (high) Vcc-0.7 Volt
  • Logic Level (low) 0.25 Volt (max)
  • Short Circuit Protection 100 %
BAMH75 data sheet

BAMHS90 – Absolute multiturn encoder 90 mm

  • Electronic multiturn gear
  • Hollow shaft up to Ø 28 mm or shaft Ø 12 mm
  • Shock resistant up to 250 g
  • Only 50 mm clearance needed
  • Easy mounting of the hollow shaft version. The encoder ist mounted directly on the drive shaft without coupling
  • Multiturn up to 8192 (13 bits) resolution, 4096 (12 bits) number of turn
  • SSI interface, additional interfaces include RS 485 and OEM specific protocolls
  • Protection: IP 65
  • optional with incremental track 2048 ppr.
  • EX available as explosion proof zone 2 and 22
BAMHS90 data sheet

AbsMY58 – Analog output encoder absolute

  • Absolut-Encoder with analogue-output-signal
  • Uout = 0-10 VDC to correspond to 0-360° mech. angle of rotation AU-version
  • Centering seat Ø 50, mounting punch circle Ø 68
  • Connector version
AbsMY58 data sheet

CAxx37 – Absolute encoder – MyAbs

Features

  • Housing Ø 37,5 mm shaft (CAxS37) and hollow/blind shaft (CAxH37) absolute encoder
  • CAxS37: up to 17 bit single turn an 12 bit single turn and 12 bit multiturn, +100 °C operationg temperature, 6 mm shaft Ø
  • CAxH37: up to 19 bit single turn an 12 bit single turn and 12 bit multiturn, +120 °C operationg temperature, 8 mm shaft Ø
  • SSI or BISS interface
  • Sinewave 1 Vpp
  • Bandwidth 500 kHz
CAxx37 data sheet

CAxx58 – Absolute encoder Myabs

  • Compact design: 50 mm length for singleturn or multiturn versions
  • Startup and operating aids: Diagnostics LED, preset key with optical feedback, status message
  • Interfaces: Standard SSI, extended SSI mode, parallel interface or BiSS
  • Sine/cosine signals available for dynamic control loops
  • Max. 30 Bit

Fieldbus Versions

  • Overall length: 63 mm (singleturn), 73 mm (multiturn) including bus cover
  • Availability of all common field bus interfaces
  • The complete bus-specific electronics is accommodated in the bus cover
  • Versions: Profibus DP, DeviceNet, CAN, CANopen and Interbus
CAxx58 data sheet

EAxx58 – Absolute encoder Myabs

  • Absolute single- and multiturn encoders with Bit Parallel, SSI, Profibus, CAN, DeviceNet, Interbus and Ethernet outputs
  • Shaft and blind shaft 58 mm diameter versions
  • Aluminium Flange and housing
  • Stainless steel shaft
  • Precision ball bearings with sealing or cover rings
  • Code disc made of unbreakable and durable plastic
  • Applications: Sensing of Angels, Distances, Tracks, Inclinations, Differences between two or more axes
  • Compact and heavy-duty industrial types
  • Housing: 58 mm Ø
  • Shaft: 6 or 10 mm Ø, blind shaft 15 mm Ø, reduction hubs of 8, 10 and 12 mm Ø
  • Max. 65,536 steps per revolution (16 Bit)
  • Max 16,384 revolution (14 Bit)
  • EMC: EN61000-6-2, EN61000-6-4, CE
  • Interface: SSI (RS 422/485), Bit parallel, push pull, Profibus DP, CAN, CANopen, Interbus, Device Net, Ethernet
EAxx58 data sheet

BAMS58 – Absolute encoder MyAbs CAN

  • Most compact multiturn shaft encoder
  • Latest field bus CANopen, CANlift profiles
  • Increased resistance against vibrations and installation mistakes avoids machine stops
  • Protection up to IP67
  • Wide temperature range -40 °C to +80 °C optional -40 °C to +90 °C
  • Fast, simple and error free connection
  • Absolutely safe operation even in strong magnetic fields via mechanical drive
  • Quick and error free start up
  • Real time position, speed, working area or acceleration data
  • Synchronous position acquisition
BAMS58 data sheet

BAxx58 – Absolute encoder MyAbs

  • Absolute single- and multiturn encoders with SSI, Profibus, CANopen and CANlift outputs
  • Shaft and hollow shaft versions with 58 mm diameter
  • Resistant diecast housing and protection up to IP 67
  • Stainless steel shaft
  • Applications: sensing of: - Angels - Distances, Tracks - Inclinations - Differences between two or more axes
  • Robust double bearing design
  • Compact and heavy-duty industrial types
  • Shaft Ø 6 or 10 mm
  • Blind/hollow shaft Ø 10, 12, 14, 15 mm
  • Absolutely safe operation even in strong magnetic fields with optical multiturn gear
  • Interface: SSI (RS485) BiSS Profibus DP 2.0 (Profile V1.1, Class 1+2) CANopen/CANlift 2.0B (Profile D5 40683.1)
  • New technology absolute encoder
BAxx58 data sheet

FAxx90 – Absolute encoder MyAbs

  • Heavy duty absolute single- and multiturn encoders with SSI, Profibus, CANopen outputs. Parallel output for most versions on request
  • Shaft and hollow shaft versions with Ø 90 mm
  • Applications: Steel industry, Paper industry, Cranes
  • Shaft Ø 11 or 12 mm
  • Through hollow shaft Ø 12, 20, 25, 30 mm (others on request)(Profibus blind shaft only)
  • Easy mounting of the hollow shaft version. The encoder is mounted directly on the drive shaft without coupling
FAxx90 data sheet
