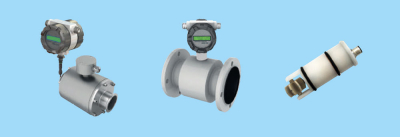

MEYLE Flow Measurement

MEYLE flow sensors can be used in fluid media of a wide variety of types. Flow-rate measurements can be conducted in media ranging from highly pure to highly contaminated, including aggressive or viscous media and applications in hygienic areas. The fact that individual sensors operating on the basis of various measuring principles can be combined with various electronic evaluation systems allows a tailor-made solution for almost any application in accordance with the requirements.

MEYLE Brochure Flow Level Temperature Measurement sensors heavy duty
MEYLE Pressure, Level and Flow Sensors catalogue
MEYLE Pressure, Level and Flow Sensors overview

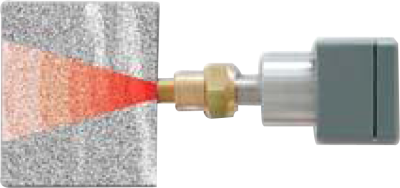

MY SFT11 – Solid Flow Transducer

The simple and reliable flow measurement for solids in pneumatic- and gravimetric conveying systems - Solid flow measurement for:
Chemical industriy - Plastic production - Cement industry - Pharmaceutical industry - Food industry

The MY SFT11C Microwave Measuring System consists of a sensor head with stainless steel pipe that acts as a waveguide and the electronic unit. To mount the equipment a hole for the mounting plug is first drilled in the conduit. The sensor is installed in line with the wall and therefore is wear?free. Simple installation in existing pipe work measurements. Flush with  wall  and  non?contact maintenance?free detecting only ”moving“ particles. High operating safety, suitable even for very small flow rates.

The system is virtually unaffected by pressure and temperature and provides a typical accuracy within +/?  5 % in pneumatic conveying systems (with even deviation of the product). The sensor can be use to monitor and control the solid flow in vertical pipes and pneumatic feed lines. For pipe diameters above 250 mm it could be necessary to install 2 or 3 sensors for a better coverage of the particle flow profile. The sensor face transmits a frequency of 24 GHz to the powder or grain material. The pulses are reflected from the particles and analysed via a special algorithm. The result is a flow proportional current output that is amplified and conditioned.   An optional instrument can display the flow value directly in kg/h and in absolute quantity (kg) (t).

MY SFT11 Solid FlowTransducer catalog
MY SFT11 Solid Flow Transducer data sheet

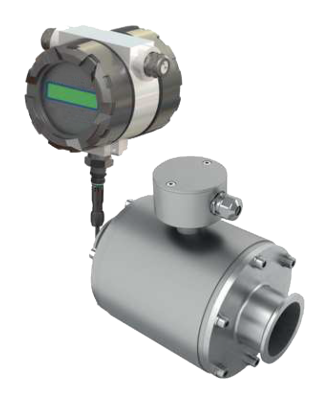

OFJ 722 – Flowmeter

Description

  • industrial inductive flow meter with display unit for food industry
  • innovative and compact connection head design
  • measurement of different liquids in a variety of sectors
  • various process connections
  • high measurement accuracy and repeatability
  • very simple and intuitive operation with control keys
  • possibility of flow monitoring function
  • 350° swivel display for comfortable reading
  • a wide range of outputs for different control systems



Typical application areas

  • water and wastewater industry,
  • agriculture, biogas plants
  • food industry, dairies, breweries
  • pharmaceutical industry
OFJ 722 - flowmeter - Data sheet

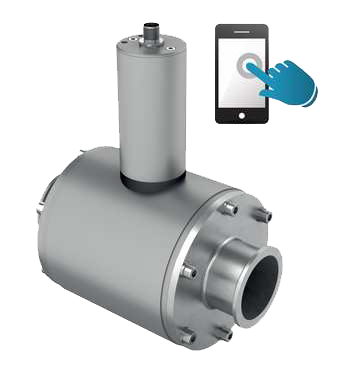

OFJ 822 – Flowmeter

Description

  • industrial inductive flow meter
  • innovative and robust
  • measurement of different liquids in a variety of sectors
  • various process connections
  • high measurement accuracy and repeatability
  • very simple intuitive operation with Android app on Bluetooth connection
  • M12 connector for electrical connection and status LED
  • a plurality of outputs for different control systems



Typical application areas

  • water and wastewater industry,
  • agriculture, biogas plants
  • food industry, dairies, breweries
  • pharmaceutical industry
OFJ 822 - flowmeter - Data sheet

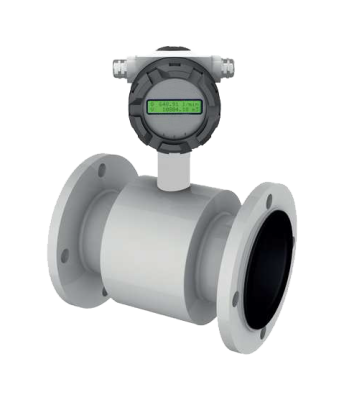

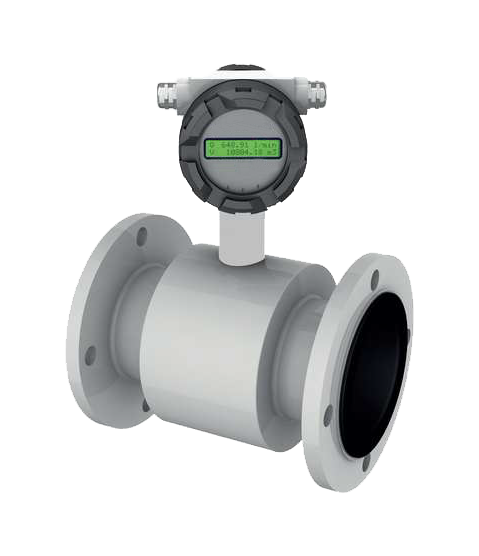

OFY 722 – Flowmeter

Description

  • industrial inductive flow meter with display unit
  • innovative and compact connection head design
  • measurement of different liquids in a variety of sectors
  • various process connections
  • high measurement accuracy and repeatability
  • very simple and intuitive operation with control keys
  • possibility of flow monitoring function (flow switch)
  • 350° swivel display for comfortable reading
  • a wide range of outputs for different control systems



Typical application areas

  • water and wastewater industry
  • agriculture, biogas plants
  • food industry, dairies, breweries
  • pharmaceutical industry
  • industrial applications such as heating circuits
  • power station technology
OFY 722 - flowmeter - Data sheet

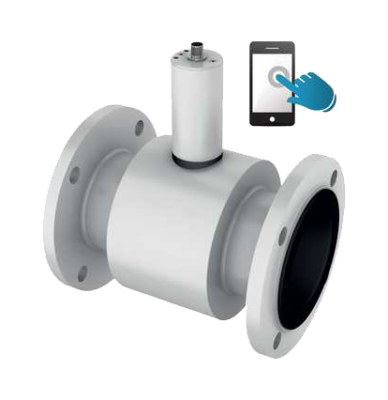

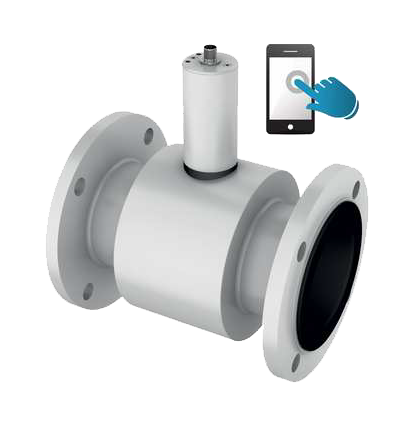

OFY 822 – Flowmeter

Description

  • industrial inductive flow meter
  • innovative and robust
  • measurement of different liquids in a variety of sectors
  • various process connections
  • high measurement accuracy and repeatability
  • very simple intuitive operation with Android app on Bluetooth connection
  • M12 connector for electrical connection and status LED
  • a plurality of outputs for different control systems



Typical application areas

  • water and wastewater industry
  • agriculture, biogas plants
  • food industry, dairies, breweries
  • pharmaceutical industry
  • industrial applications such as heating circuits
  • power station technology
OFY 822 - flowmeter - Data sheet

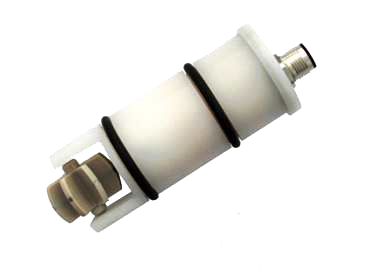

RHR -05... -10... -20 – Paddle Wheel

Features

  • flowtransmitter for rough industrial environments
  • innovative, robust and simple to use
  • measuring of different watery liquids for a large number of industries, independent from conductivity
  • different process connections and welding adapters
  • clear operation through internal key
  • M12 connector for electrical application and status LED
  • a multitude of outputs for different controlling systems





Application areas

  • water- and waste-water industry
  • agriculture, digester gas systems
  • food industry, refrigeration installation
  • cooling for implements and so on
  • VE-water applications



Order code RHR

-05: fixed pulse output, fixed cable connection output TTL

-10: fixed pulse output PNP, 3 puls constants deposited, M12 connector

-20: fixed pulse output PNP and output 4...20mA, M12 connector

RHR-05-10-20 - paddle-wheel - Data sheet
